Comes with inserts!
Comes with everything you need to use it right away.
-You can exchange inserts to do R-and C-chamfering, and exchange the optional guide plate to perform all kinds of other work.
-With a throwaway system, inserts can be used with 4 corners when R-chamfering and 8 back and front corners when C-chamfering, keeping costs low.
■Main unit
| Model no. |
VR/VR-400 |
| Power |
100V(200W) |
| Number of revolutions |
3,000/3,600r.p.m. 50/60Hz |
| Dimentions |
W300×D360×H300mm |
| Weight |
27kg |
| Guide plate |
R-300/R-400 |
| Inserts |
N43GXR NK2020(3) |
■Compatible inserts
| Material being cut |
Recommended insert model no. |
| for R-chamfering |
for C-chamfering |
| Regular steel |
N43GXR NK2020 |
N43GXR NK2001 |
| Alloy steel |
N43GXR NK2020 |
N43GXR NK2001 |
| Stainless steel |
N43GXR NK6060 |
N43GXR NK6060 |
| Aluminum, resin, brass |
N43GXR NK1010 |
N43GUR NK1010 |
| Cast iron |
N43GXR NK1010 |
N43MOZ NK1010 |
■Guide plate
| Model no. |
A |
B |
C |
D |
E |
Possible work thickness |
Maximum C face |
Ultra-hard chrome coating |
| R-300 |
300 |
1 |
75 |
75 |
12 |
1.5mm or more |
MAX4C |
○ |
| R-400 |
400 |
1 |
75 |
75 |
12 |
1.5mm or more |
MAX4C |
○ |

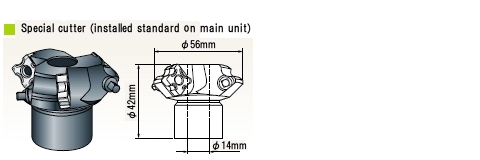

■Special cutter (comes with main unit)

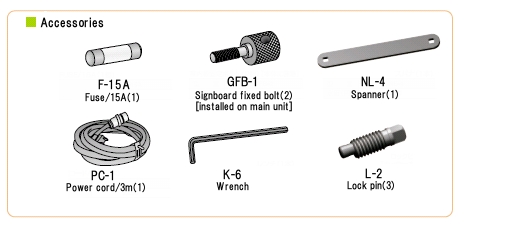

■Accessories
| Model no. |
|
| K-6 |
Wrench(1) |
| F-15A(1) |
Fuse/15A |
| L-2 |
Lock pin(12) |
| GFB-1 |
Signboard fixed bolt(2)[installed on main unit] |
| NL-4 |
Spanner(1) |
| PC-1 |
Power cord/3m(1) |
■Insert details
|
| Model no. |
Material |
Coating |
Insert shape |
Number of corners used |
Number per case |
| N43GXR NK2001 |
Cermet |
None |
R1・2・3・4 |
4 |
12 |
| N43GXR NK1010 |
Ultra-hard K10 type |
None |
R1・2・3・4 |
4 |
12 |
| N43GXR NK2020 |
Ultra-hard M20 type |
None |
R1・2・3・4 |
4 |
12 |
| N43GXR NK6060 |
Ultra-hard M20 type |
TiAlN |
R1・2・3・4 |
4 |
12 |
| N43GXR-1R NK2001 |
Cermet |
None |
Any corner,
same R |
4 |
12 |
| N43GXR-2R NK2001 |
Cermet |
None |
4 |
12 |
| N43GXR-3R NK2001 |
Cermet |
None |
4 |
12 |
| N43GXR-4R NK2001 |
Cermet |
None |
4 |
12 |
| N43GXR-1R NK2020 |
Ultra-hard M20 type |
None |
4 |
12 |
| N43GXR-2R NK2020 |
Ultra-hard M20 type |
None |
4 |
12 |
| N43GXR-3R NK2020 |
Ultra-hard M20 type |
None |
4 |
12 |
| N43GXR-4R NK2020 |
Ultra-hard M20 type |
None |
4 |
12 |
| N43GXR-1R NK6060 |
Ultra-hard M20 type |
TiAlN |
4 |
12 |
| N43GXR-2R NK6060 |
Ultra-hard M20 type |
TiAlN |
4 |
12 |
| N43GXR-3R NK6060 |
Ultra-hard M20 type |
TiAlN |
4 |
12 |
| N43GXR-4R NK6060 |
Ultra-hard M20 type |
TiAlN |
4 |
12 |
| *N43GXR-0.5R NK2020 |
Ultra-hard M20 type |
None |
4 |
12 |
| *N43GXR-0.75R NK2020 |
Ultra-hard M20 type |
None |
4 |
12 |
| *N43GXR-1.5R NK2020 |
Ultra-hard M20 type |
None |
4 |
12 |
| *N43GXR-2.5R NK2020 |
Ultra-hard M20 type |
None |
4 |
12 |
| *N43GXR-3.5R NK2020 |
Ultra-hard M20 type |
None |
4 |
12 |
| *N43GXR-4.5R NK2020 |
Ultra-hard M20 type |
None |
4 |
12 |
| *N43GXR-5R NK2020 |
Ultra-hard M20 type |
None |
4 |
12 |
| N43MOZ NK2001 |
Cermet |
None |
Honing edge |
8 |
12 |
| N43MOZ NK1010 |
Ultra-hard K10 type |
None |
Sharp edge |
8 |
12 |
| N43MOZ NK2020 |
Ultra-hard M20 type |
None |
Honing edge |
8 |
12 |
| N43MOZ NK3030 |
Ultra-hard M20 type |
TiN |
Honing edge |
8 |
12 |
| N43MOZ NK6060 |
Ultra-hard M20 type |
TiAlN |
Honing edge |
8 |
12 |
| N43GUR NK2001 |
Cermet |
None |
Honing edge |
8 |
12 |
| N43GUR NK1010 |
Ultra-hard K10 type |
None |
Sharp edge |
8 |
12 |
| N43GUR NK2020 |
Ultra-hard M20 type |
None |
Honing edge |
8 |
12 |
| N43GUR NK3030 |
Ultra-hard M20 type |
TiN |
Honing edge |
8 |
12 |
| N43GUR NK6060 |
Ultra-hard M20 type |
TiAlN |
Honing edge |
8 |
12 |
| N43GUR NK8080 |
Ultra-hard K10 type |
TiAlN |
Sharp edge |
8 |
12 |
|
*Semi-standard
|
